Motorized Flat Panel

Overview

Motorized flat panel for automated astrophotography flat frame capture

This motorized flat panel mounts on a telescope and automates flat frame capture.

The panel opens and closes automatically, controls brightness, and integrates directly with NINA through a custom ASCOM driver.

Current prototype in progress mounted on ZWO FF65 APO, compatible with ASKAR 65 PHQ.

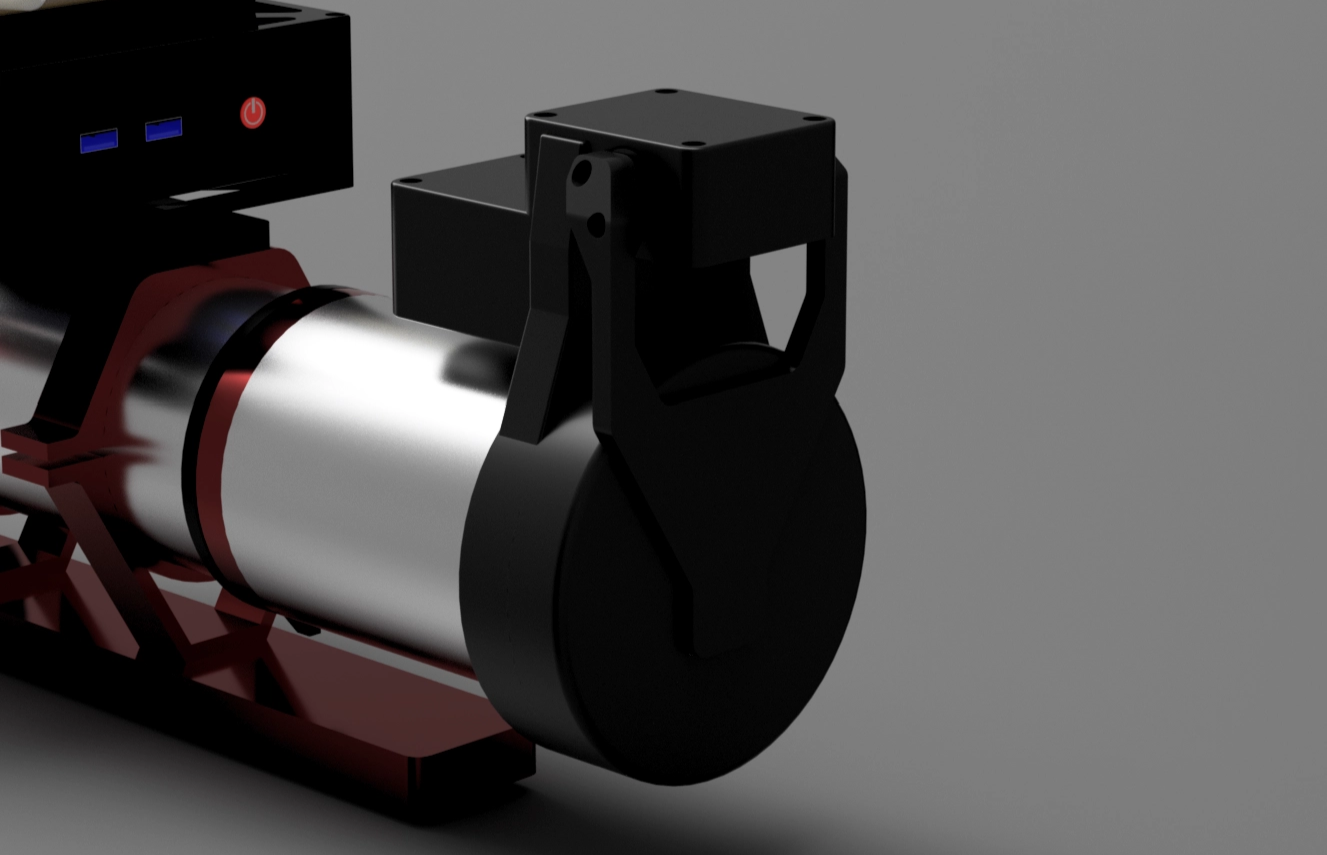

motorized flat panel mounted on ZWO FF65 APO telescope front view
Motorized flat panel mounted on ZWO FF65 APO

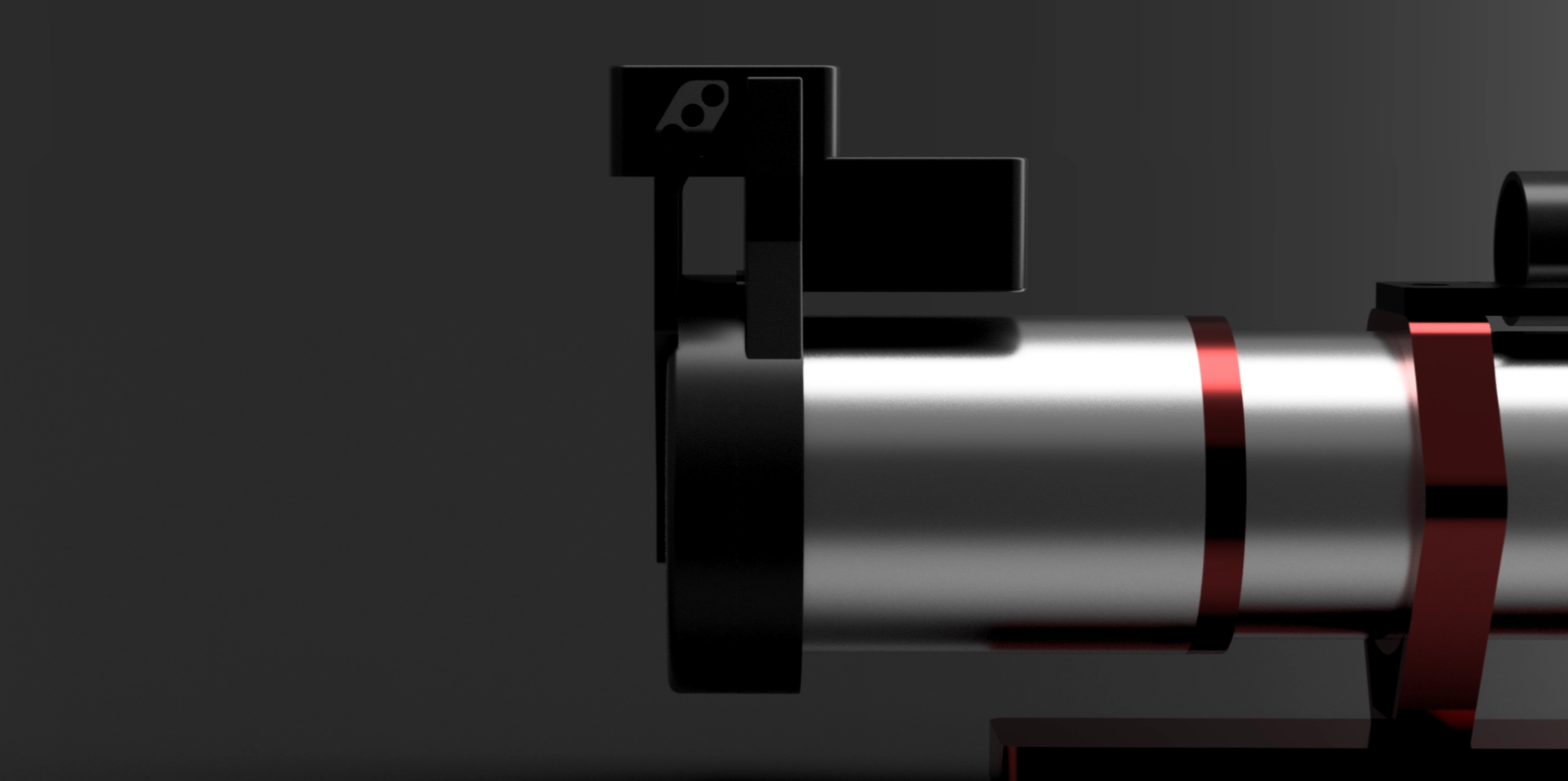

motorized flat panel mounted on telescope side view
Panel arm open position showing mounting and clearance.

What it does

  • Motorized flap, opens and closes from NINA sequence
  • Brightness control for repeatable flat frames
  • ASCOM integration, no manual steps
  • Uniform illumination across the panel
  • Compact design stays mounted on the scope
  • Custom PCB with integrated electronics

Why I built it

My previous setup was a t-shirt in front of the scope and a screen showing a white image.

It worked, but it completely broke the idea of an automated workflow.

I wanted a flat panel that could stay mounted and handle flats without me being there.

Status

Currently in active prototyping.

The system works, but I am still refining the mechanical design.

Interested?

If you would use this, join the Discord for updates and early access.

Join the Discord for updates and early access
